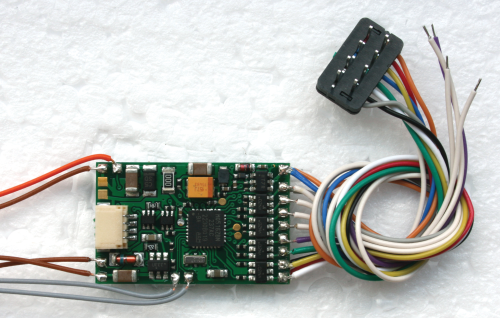

Decoder for DC motors (including coreless motors). with Load control.
Formats: DCC / MM Automatic format detection.
Feedback on RailCom and RailCom plus.
Max Current: 3000 mA.
Maximum motor current: 3000 mA
Overload protection.
8 switching outputs, each with max. 500 mA.
Effects of the switching outputs: direction-dependent switching, flashing, dimming, programmable analog mode, kicking, special function for speed step 0, double flash, MARs-Light.
Coupling and uncoupling function.
Servo-control.
2 switch inputs.
Automatic shuttle control.
SUSI interface. With soldered SUSI connector (JST 4-pin).
3 built-in sounds (horn, bell, locomotive whistle).
Dimensions: 25 x 15 x 5 mm.
Also for analogue mode. Automatic analog detection.
