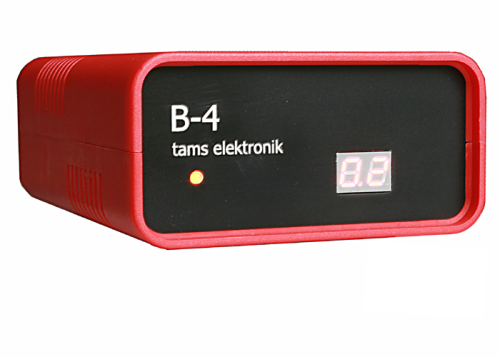

TAMS B-4

5 A booster for layouts with symmetrical track voltage (also in combination with the ABC braking distance).



Digital formats: MM, DCC, mfx ® .

RailCom support: yes (can be disabled ) .

Applications: AC and DC power systems rated from size Z to II

Setting : Turning the RailCom Cutouts , track voltage (12 – 24 V , in 1 V steps ) , breaking current ( 2-5 A, in 1 A steps ) Restart time after short-circuit , short-circuit limit warning. Setting by jumpers or CVs ( DCC) .

Internal short circuit shutdown (limit set).

Short feedback to the control center. (DCC)

Automatic restart ( eintstellbar time ) to short circuit.

re : Short circuit alarm .

Shutdown for over temperature.

re : turn on and off with DCC turnout command (can be disabled ) .

new: watchdog function.

LED Anzeigefür operating condition.

2-digit 7-segment display for displaying the current track current and the internal settings .

Supply voltage : 12 – 20 V AC or 14-26 V DC (depends on the track voltage ) .

Track voltage : 12 – 24 V , adjustable in 1 V increments (controlled) .

Output current: 2-5 A, adjustable in 1 A steps .

Dimensions including cabinet : 95 x 135 x45 mm.

Connection cable for digital center : Schaltlitze > 0.1 mm ² (not included) .



Other Accessories: Connection cable for Master Control (not included) , power transformer(not included) .



Manual: http://www.tams-online.de/htmls/produkte/B-4/B-4.PDF
