Digikeijs LOCVISION 2.0 Kit

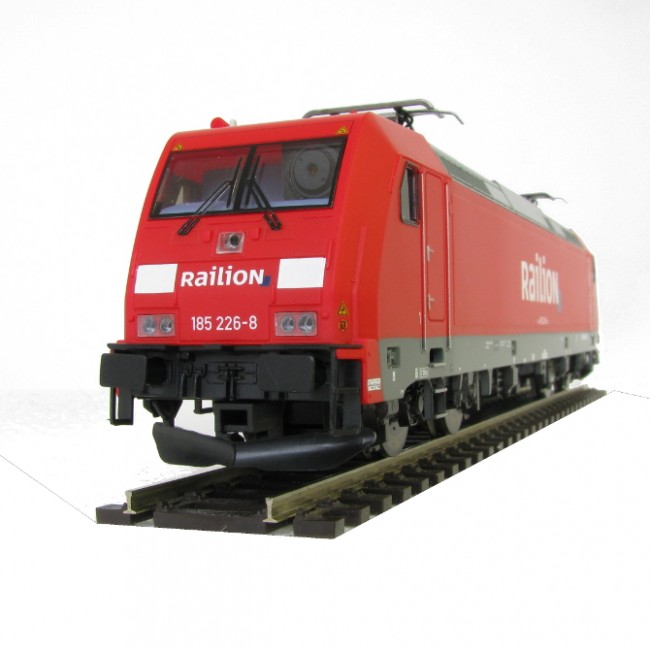

This wireless camera kit including a camera, transmitter and receiver (*) will allow you to look at your model railway from your locomotive’s cabin.
The analogue video signal means you will be able to enjoy a LIVE image without any delay.

The kit is directly connected to the rail voltage and is suitable for DC, AC and digital systems.

The kit is small enough to also be suitable for use in some N locomotives.

Package contents:

• Voltage power module
• Camera (PAL & NTSC)
• 5.8GHZ transmitter
• 5.8GHZ receiver
• Video cable
• 110-230Volt Volt Mains

This system is suitable for any image carrier with a standard AV Video input.

Technical features

Frequency: 5.8GHZ
Transmitting power: 200mW
Effective range (indoor): 10 meters
Effective range (outdoor): 25 meters
Video signal: Analog
Signal delay: 0mS

Camera

Type: Color CCIQ
Pixels: 648 x 488 (NTSC & PAL)
Resolution: 400 TV Lines
Picture: 50/sec (PAL) – 60/sec (NTSC)
Lum: 0.6 Lux/F1.2
Lens: 3.9mm / F2.8

Power Consumption

Transmitter and Camera: 150 – 250mA
Receiver: 200 – 300mA

Dimensions (L x B x H)

Camera: 10 x 10 x 7mm

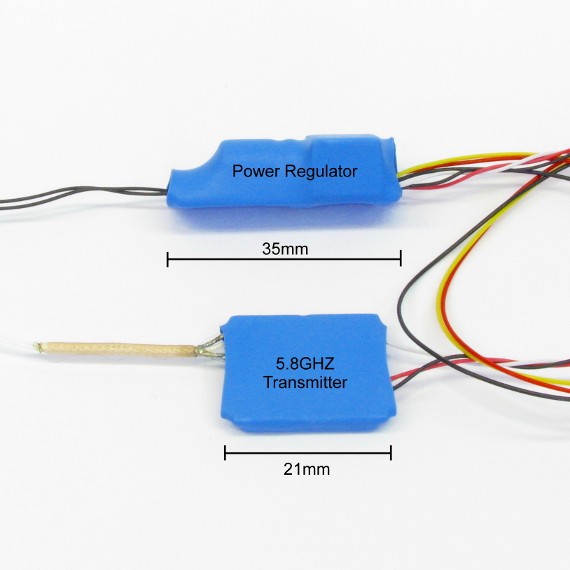

Transmitter: 21 x 20 x 3,5mm
Power module: 35 x 12 x 10,5mm
Wire Length: 38cm (transmitter to camera)
