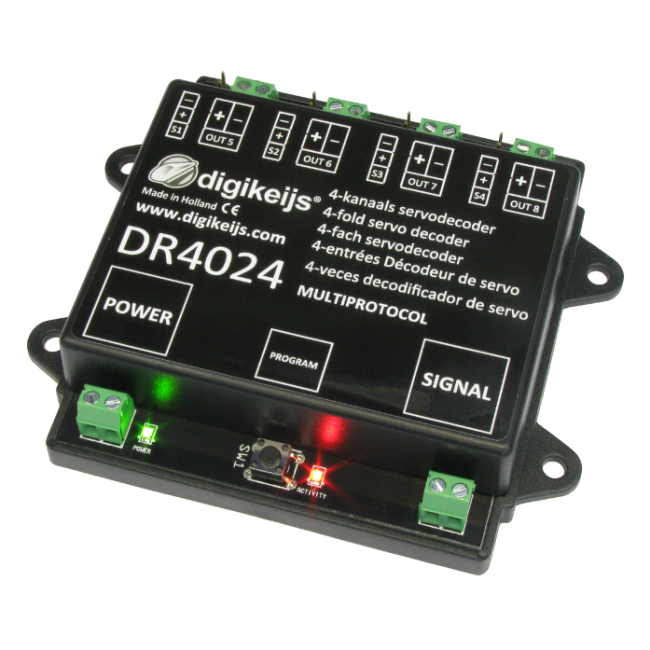

Digikeijs DR4024 DIGISERVO

The DIGISERVO decoder is a fully programmable servo decoder. Each output also has an extra switching output to switch eg a light or decoupling track. Every output can also be calibrated with software which makes fitting servos a lot easier because they are set up after installation. The DIGISERVO decoder is the first servo decoder to work on the basis of function mapping. The decoder sees the ‘switching addresses’ as control functions for the various outputs. Depending on the mapping that has been set up, the decoder can use from 1 to 8 ‘switching addresses’.

Features

4 servo outputs
4 switching outputs
Power indicator
Activity indicator
Mass simulation (eg semaphores)
Servo calibration via the control unit
Detailed mapping function
Multiprotocol (DCC/MM)
Fully CS2-compatible
POM (Programming on Main)
Separate power and signal input

Technical features

Power consumption: 15mA
Maximum servo load: 500mA per servo output (2 Amps total)
Maximum switching load: 1 Amp per output (3 Amps total)
